74HP Rotary Screw Air Compressor
(Permanent Magnet Motor)
| Model | MSE55A |
| Horsepower (HP) | 74 |
| Power (KW) | 55 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 11.65/0.6 |
| 10.00/0.7 | |
| 9.90/0.8 | |
| 8.54/1.0 | |
| Weight(kg) | 1010 |
| Pipe diameter of outlet | G21/2 |

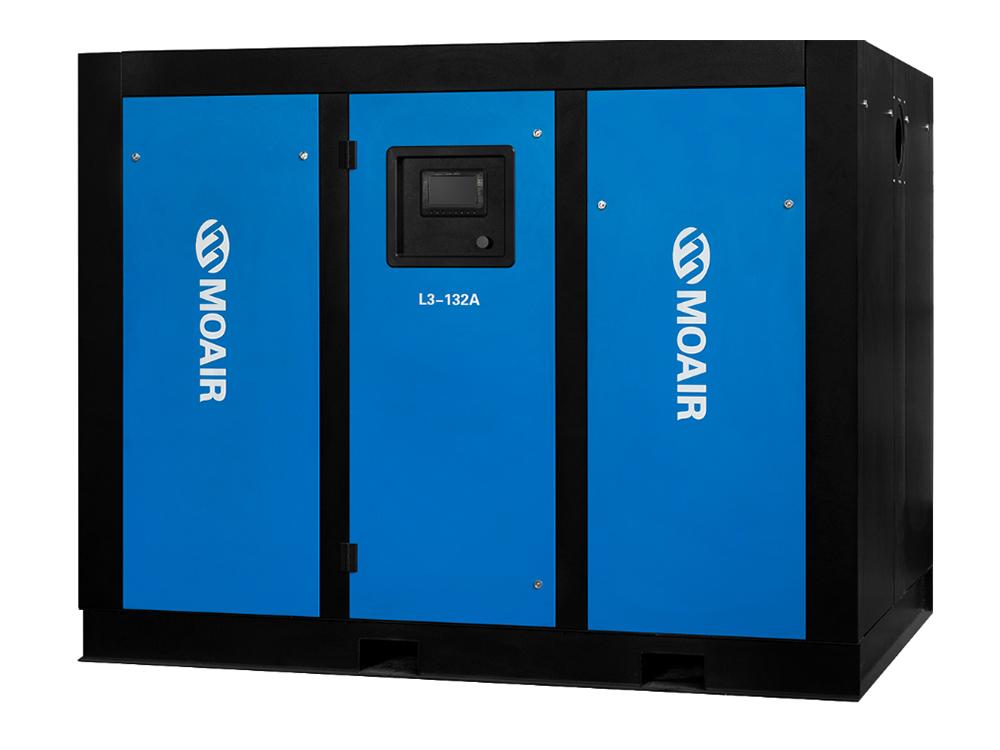

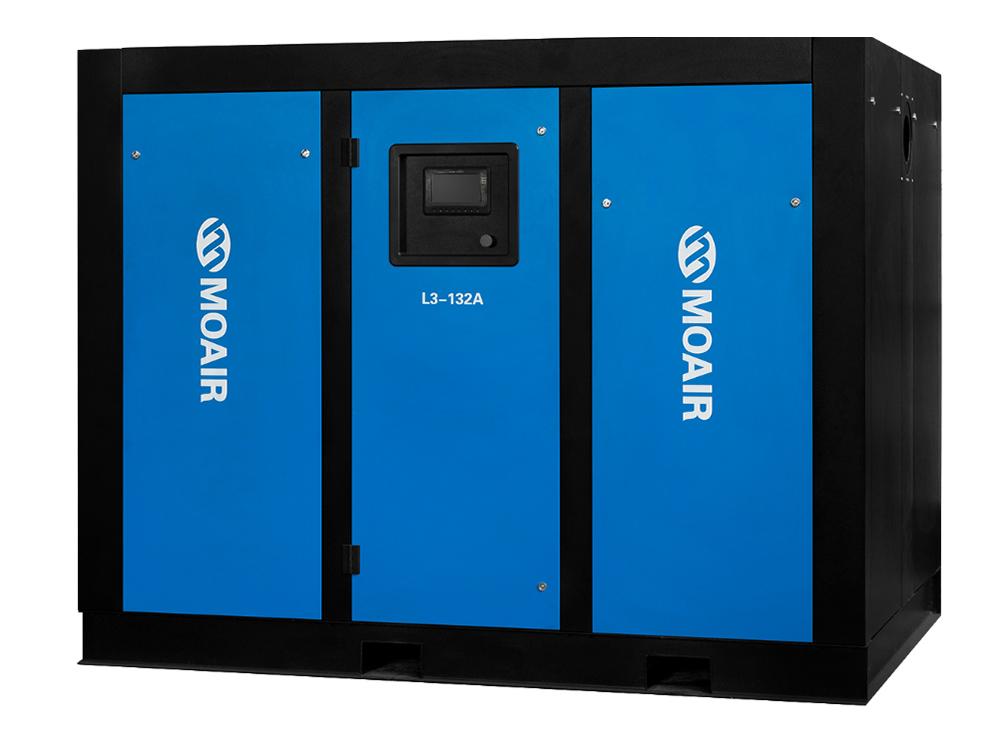

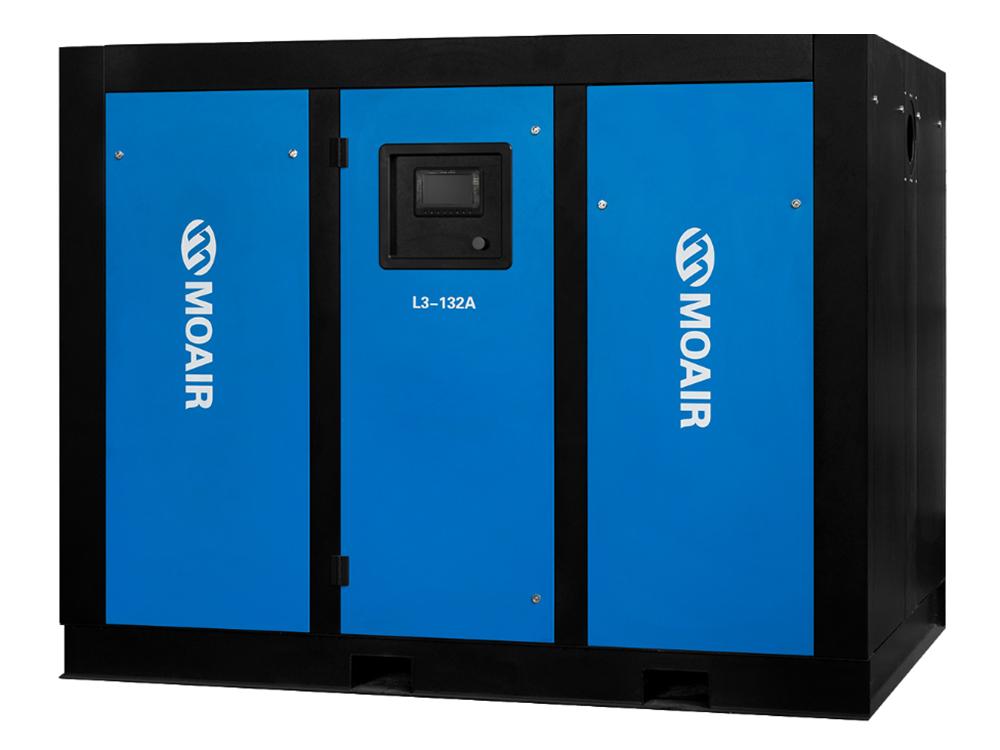

L3-55A 74HP Permanent Magnet Rotary Screw Air Compressor
(Low Pressure)
| Model | L3-55A |
| Horsepower (HP) | 74 |
| Power (KW) | 55 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 17.66/0.3 |
| Weight(kg) | 1185 |
| Pipe diameter of outlet | DN80 |
L4-55A 74HP Permanent Magnet Rotary Screw Air Compressor
(Low Pressure)
| Model | L4-55A |
| Horsepower (HP) | 74 |
| Power (KW) | 55 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 15.26/0.4 |
| Weight(kg) | 1750 |
| Pipe diameter of outlet | DN80 |
L5-55A 74HP Permanent Magnet Rotary Screw Air Compressor
(Low Pressure)
| Model | L5-55A |
| Horsepower (HP) | 74 |
| Power (KW) | 55 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 14.13/0.5 |
| Weight(kg) | 1750 |
| Pipe diameter of outlet | DN65 |

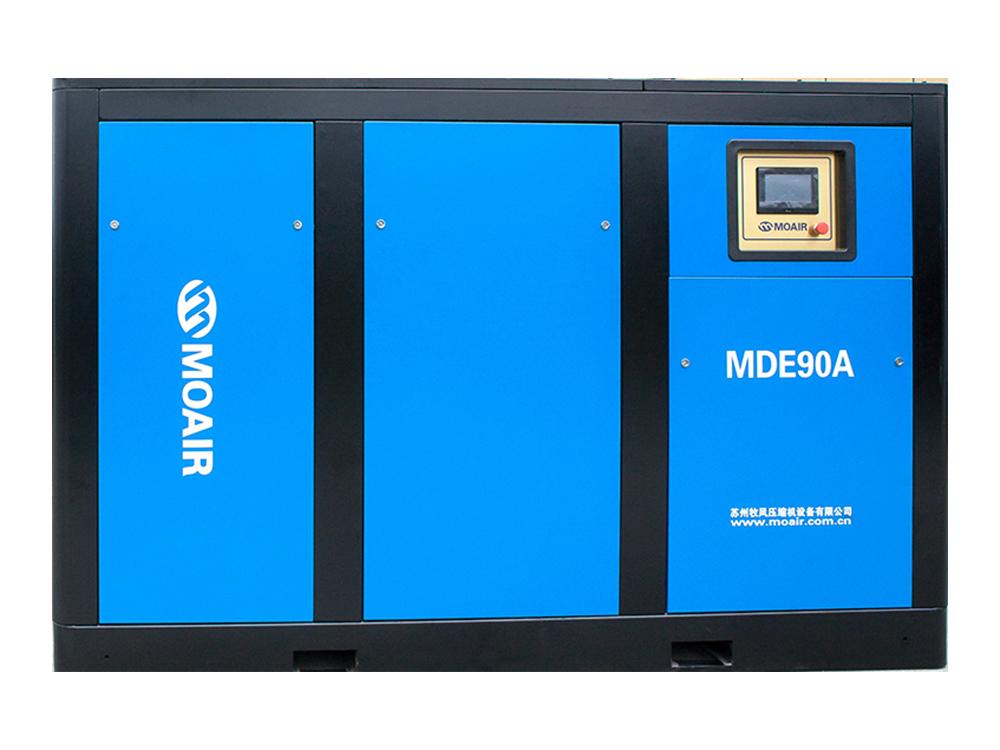

MDE-55A 74HP Two Stage Permanent Magnet Rotary Screw Air Compressor
(Double Permanent Magnet Motor Drive)
| Model | MDE-55A |
| Horsepower (HP) | 74 |
| Power (KW) | 55 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 13.4/0.6 |
| 12.7/0.7 | |
| 12.4/0.8 | |
| 10.9/1.0 | |
| Weight(kg) | 2250 |
| Pipe diameter of outlet | DN50 |
| Remarks | Two PM motors drive Two-stage type |
MFG75A 74HP Direct Drive Rotary Screw Air Compressor
| Model | MFG75A |
| Horsepower (HP) | 74 |
| Power (KW) | 55 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 9.62/0.8 |
