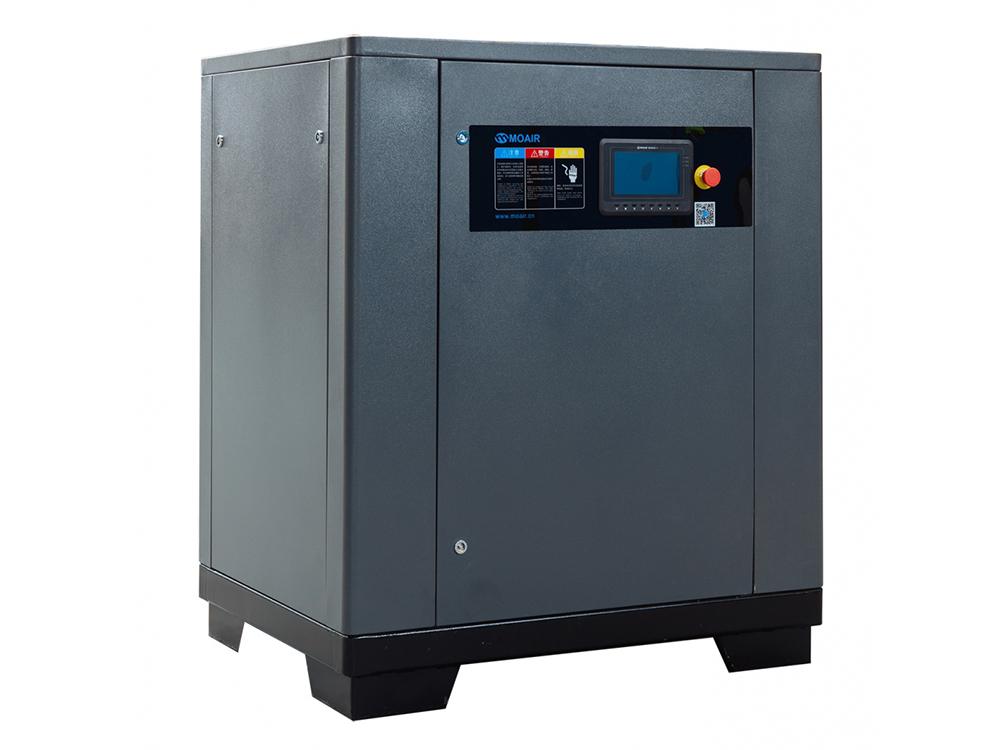

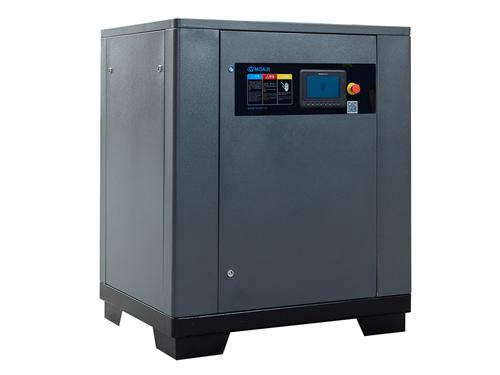

120HP Rotary Screw Air Compressor
(Permanent Magnet Motor)
| Model | MSE90A |
| Horsepower (HP) | 120 |
| Power (KW) | 90 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 19.11/0.6 |
| 17.72/0.7 | |
| 16.31/0.8 | |
| 14.08/1.0 | |
| Weight(kg) | 1790 |
| Pipe diameter of outlet | DN65 |

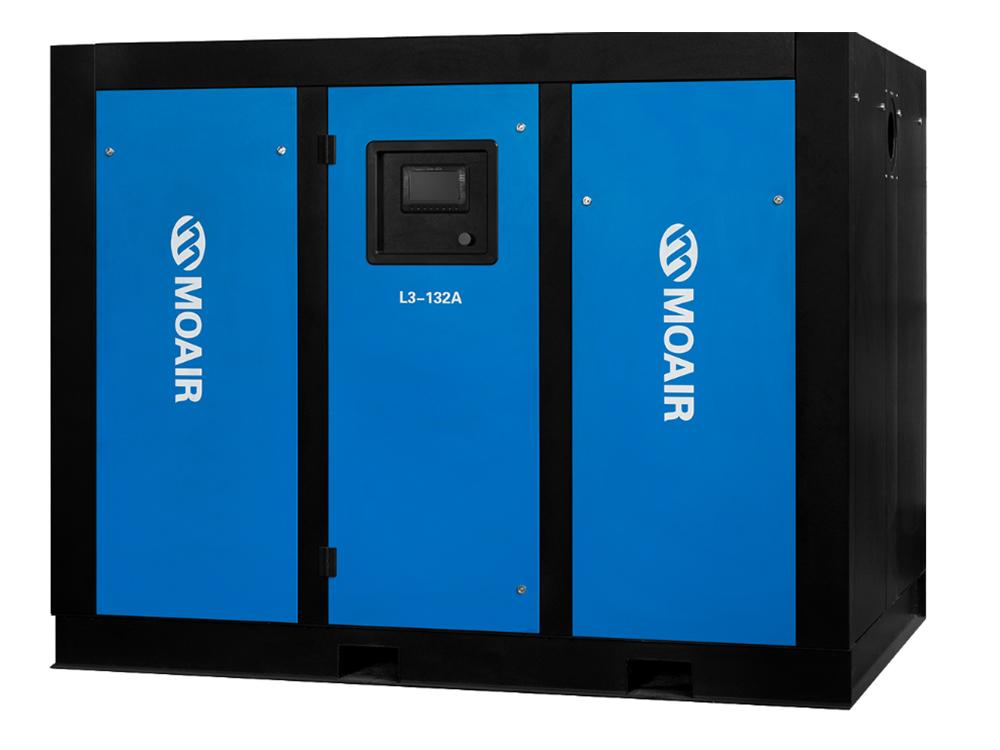

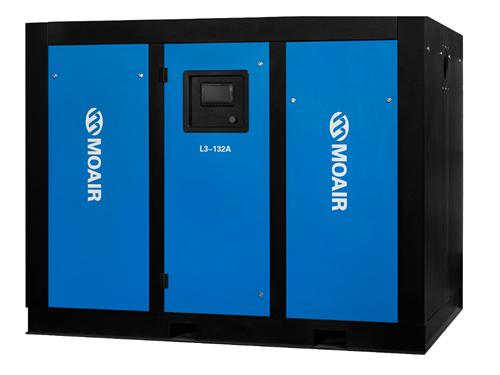

L4-90A 120HP Permanent Magnet Rotary Screw Air Compressor
(Low Pressure)
| Model | L4-90A |
| Horsepower (HP) | 120 |
| Power (KW) | 90 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 23.07/0.4 |
| Weight(kg) | 1950 |
| Pipe diameter of outlet | DN80 |

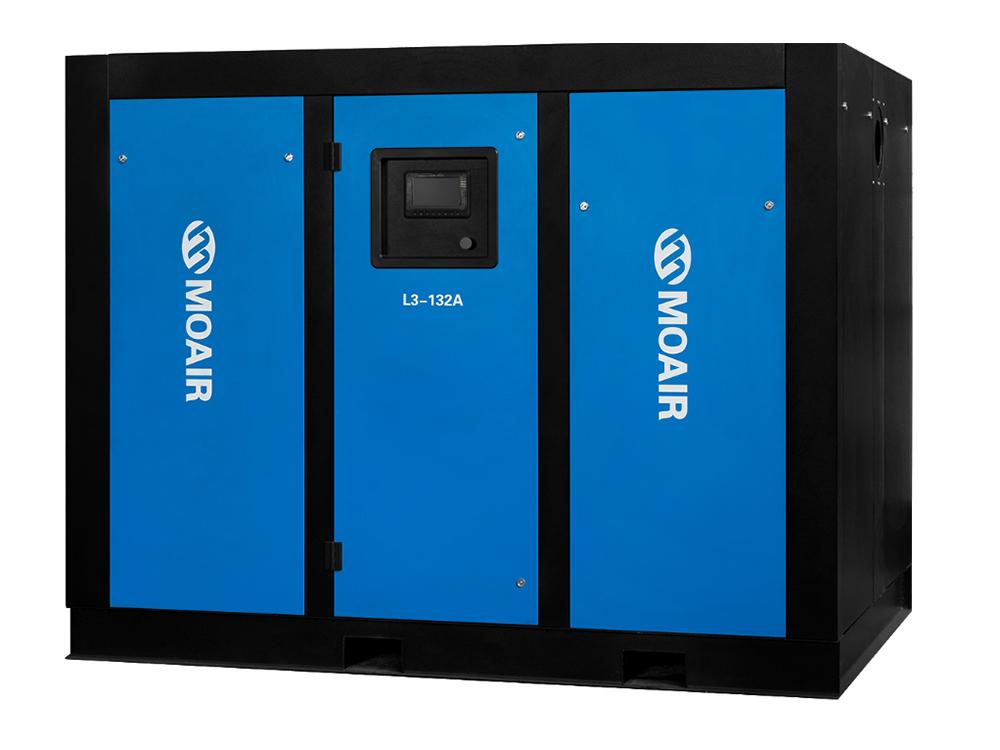

L5-90A 120HP Permanent Magnet Rotary Screw Air Compressor
(Low Pressure)
| Model | L5-90A |
| Horsepower (HP) | 120 |
| Power (KW) | 90 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 21.25/0.5 |
| Weight(kg) | 1950 |
| Pipe diameter of outlet | DN80 |

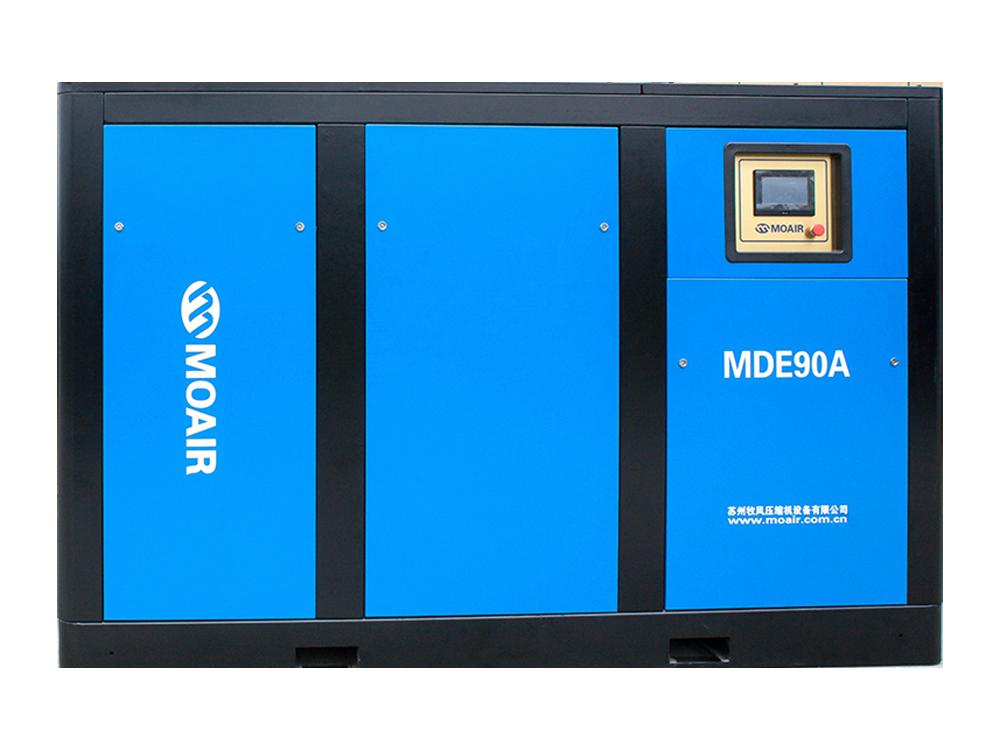

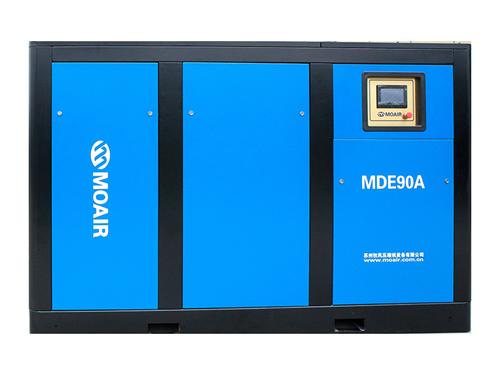

MDE-90A 120HP Two Stage Permanent Magnet Rotary Screw Air Compressor
(Double Permanent Magnet Motor Drive)
| Model | MDE-90A |
| Horsepower (HP) | 120 |
| Power (KW) | 90 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 23.0/0.6 |
| 21.8/0.7 | |
| 20.1/0.8 | |
| 18.1/1.0 | |
| Weight(kg) | 2660 |
| Pipe diameter of outlet | DN65 |
| Remarks | Two PM motors drive Two-stage type |

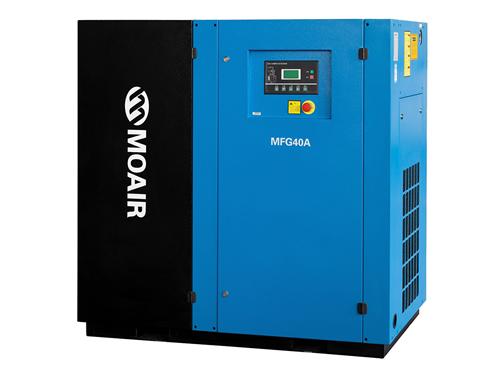

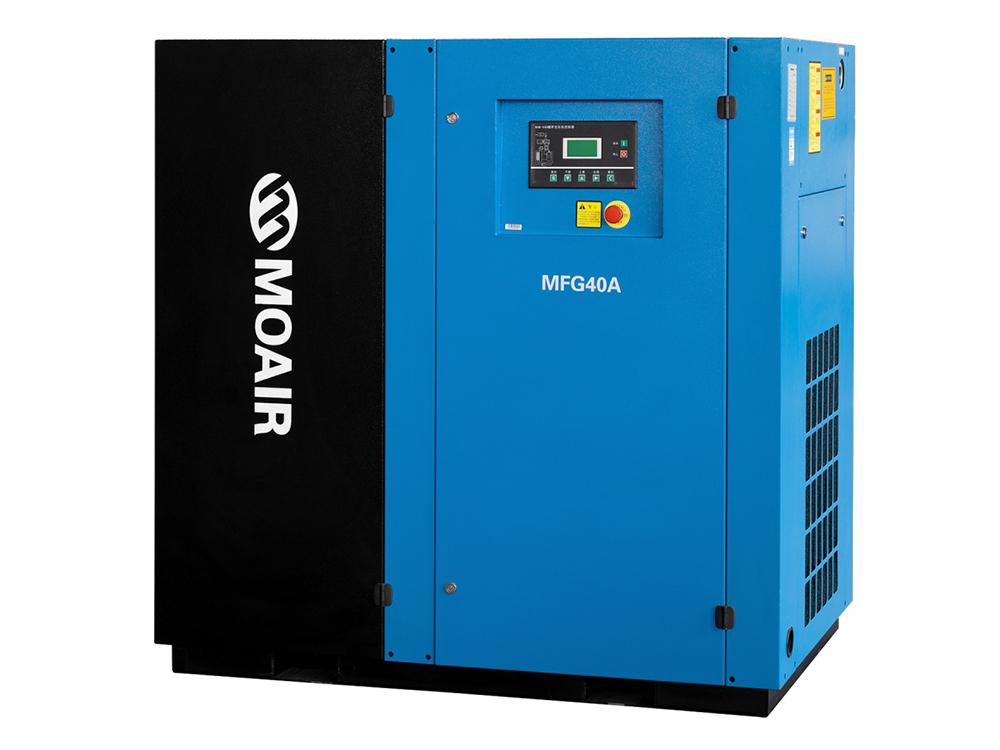

MFG120A 120HP Direct Drive Rotary Screw Air Compressor
| Model | MFG120A |
| Horsepower (HP) | 120 |
| Power (KW) | 90 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 15.3/0.8 |
