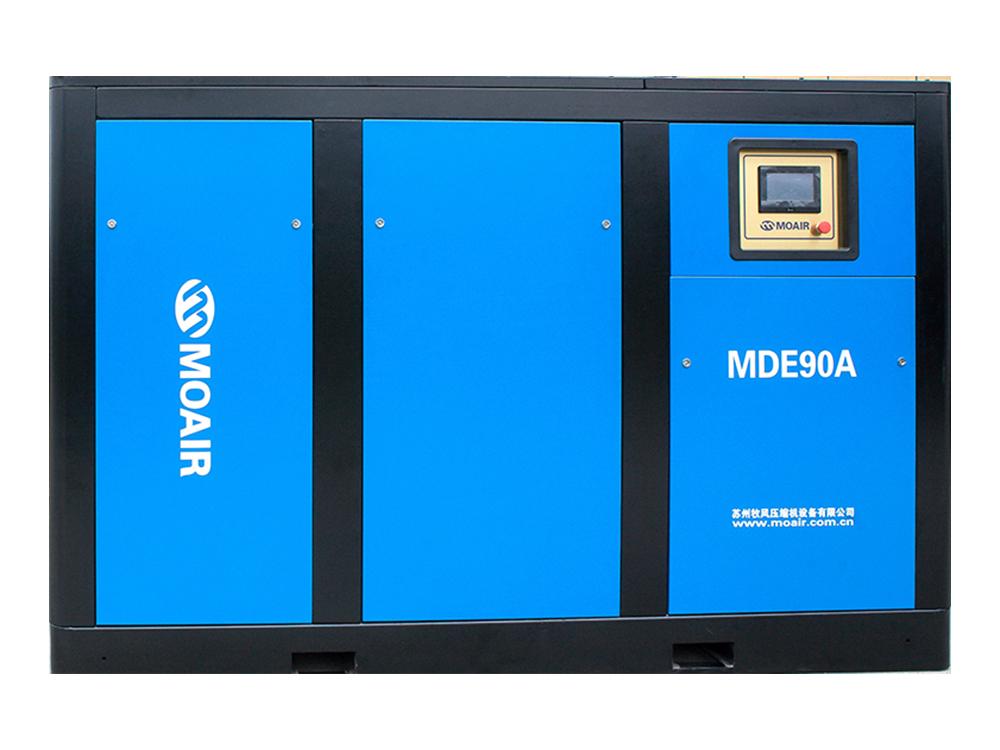

215HP Rotary Screw Air Compressor
(Single Permanent Magnet Motor Drive)
| Model | MDE-160A |
| Horsepower (HP) | 215 |
| Power (KW) | 160 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 40.6/0.6 |
| 38.3/0.7 | |
| 35.7/0.8 | |
| 30.4/1.0 | |
| Weight(kg) | 4220 |
| Pipe diameter of outlet | DN80 |
| Remarks | One PM motors two -stage type |

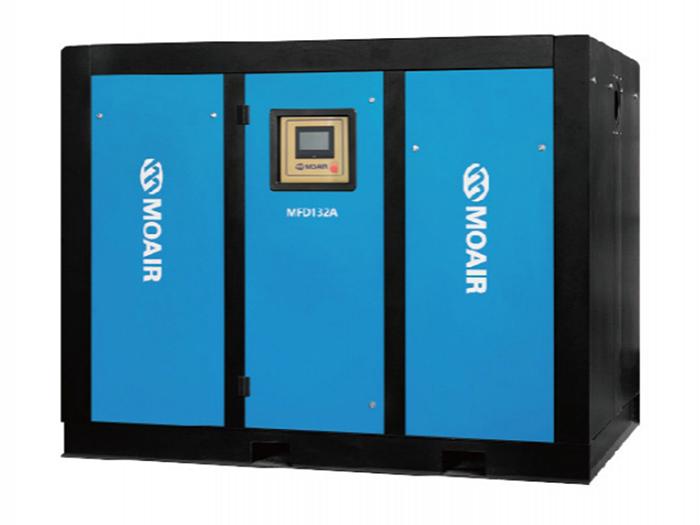

MFD-160A 215HP Fixed Speed Rotary Screw Air Compressor
(Two Stage)
| Model | MFD-160A |
| Horsepower (HP) | 215 |
| Power (KW) | 160 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 37.0/0.6 |
| 35.5/0.7 | |
| 35.0/0.8 | |
| 28.8/1.0 | |
| Weight(kg) | 4220 |
| Pipe diameter of outlet | DN80 |
| Remarks | Fix-speed two stage type |

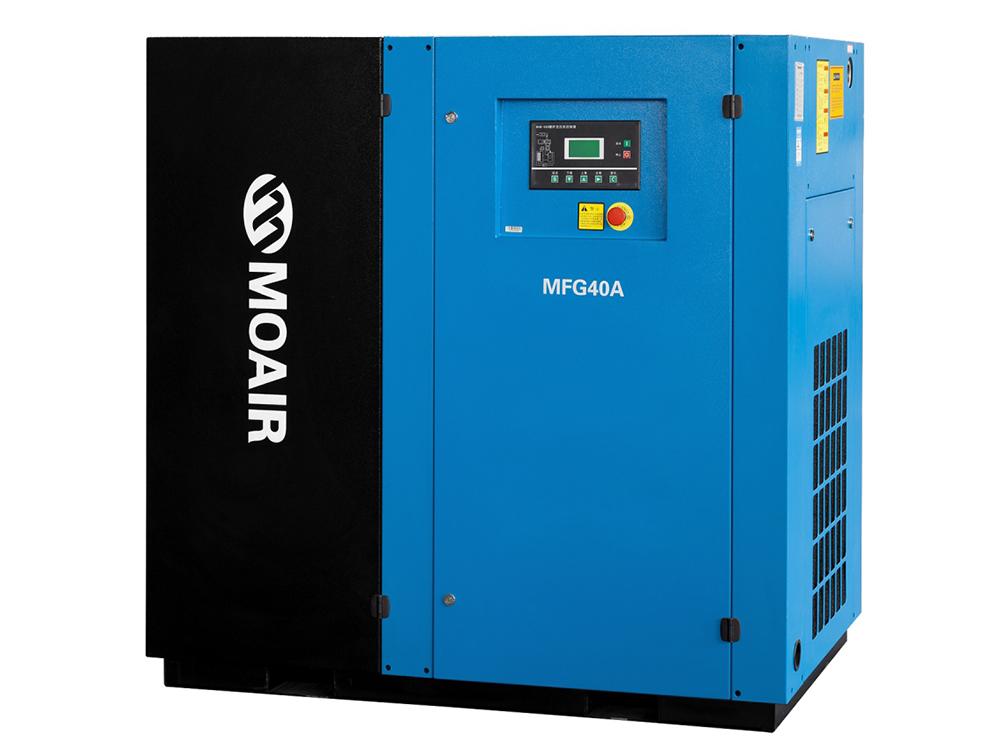

MFG200A 215HP Direct Drive Rotary Screw Air Compressor
| Model | MFG200A |
| Horsepower (HP) | 215 |
| Power (KW) | 160 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 25.8/0.8 |

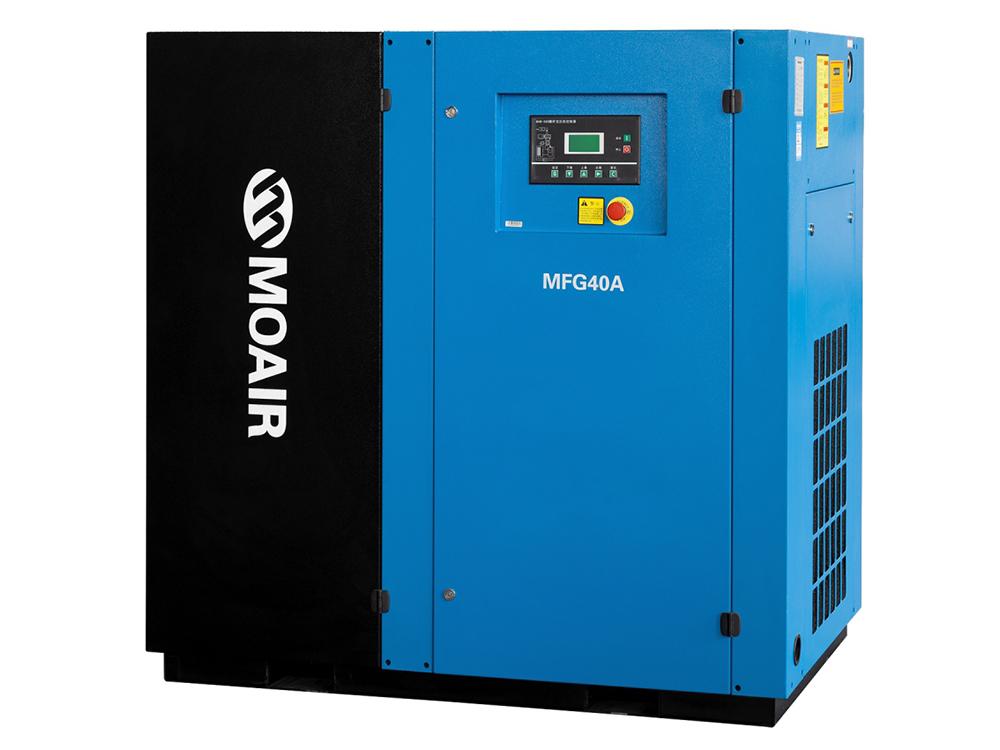

MFG200W 215HP Direct Drive Rotary Screw Air Compressor
| Model | MFG200W |
| Horsepower (HP) | 215 |
| Power (KW) | 160 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 25.8/0.8 |
