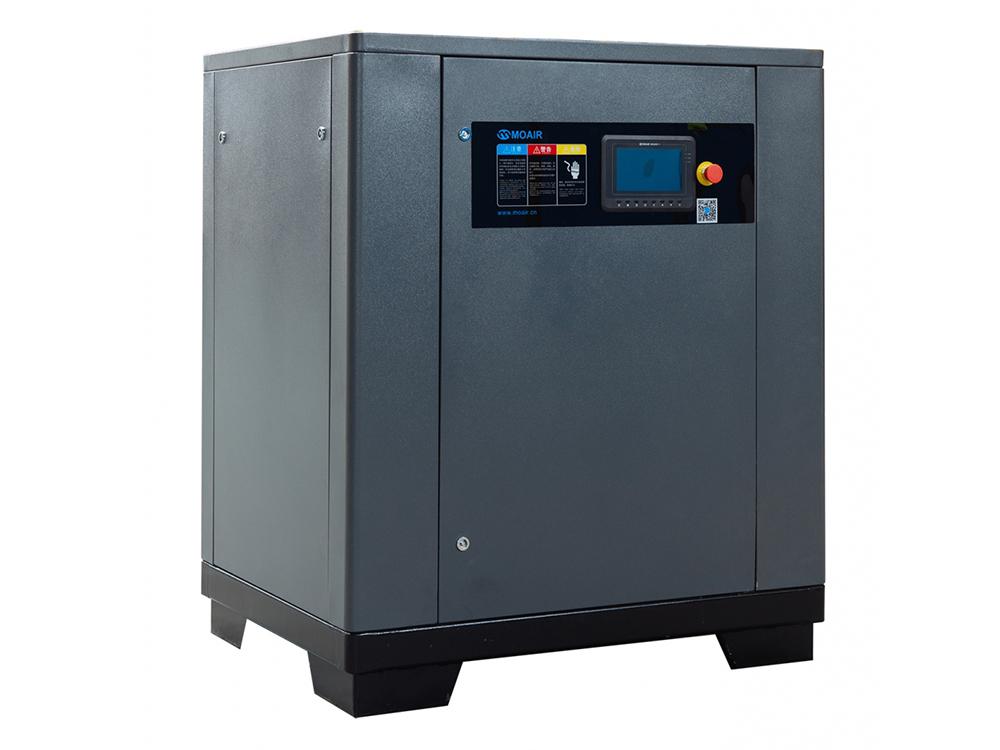

335HP Rotary Screw Air Compressor
(Permanent Magnet Motor)
| Model | MSE250A |
| Horsepower (HP) | 335 |
| Power (KW) | 250 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 45.00/0.6 |
| 44.00/0.7 | |
| 43.00/0.8 | |
| 38.50/1.0 | |
| 35.00/1.25 | |
| Weight(kg) | 5100 |
| Pipe diameter of outlet | DN100 |
MFD-250A 335HP Fixed Speed Rotary Screw Air Compressor
(Two Stage)
| Model | MFD-250A |
| Horsepower (HP) | 335 |
| Power (KW) | 250 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 54.0/0.7 |
| 51.0/0.8 | |
| 41.0/1.0 | |
| 39.0/1.25 | |
| Weight(kg) | 8350 |
| Pipe diameter of outlet | DN125 |
| Remarks | Fix-speed two stage type |
MFG350A 335HP Direct Drive Rotary Screw Air Compressor
| Model | MFG350A |
| Horsepower (HP) | 335 |
| Power (KW) | 250 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 43.2/0.8 |
MFG350W 335HP Direct Drive Rotary Screw Air Compressor
| Model | MFG350W |
| Horsepower (HP) | 335 |
| Power (KW) | 250 |
| Air delivery / Discharge pressure (m3/min) / (Mpa) | 43.2/0.8 |
